AI Overlay Builder

Generate an overlay, test it, then load the saved output in OBS.

What It Is

The AI Overlay Builder helps create HTML overlays from a prompt. It is not the OBS page by itself. Use aiprompt.html to build and preview, then use aioverlay.html for the output page.

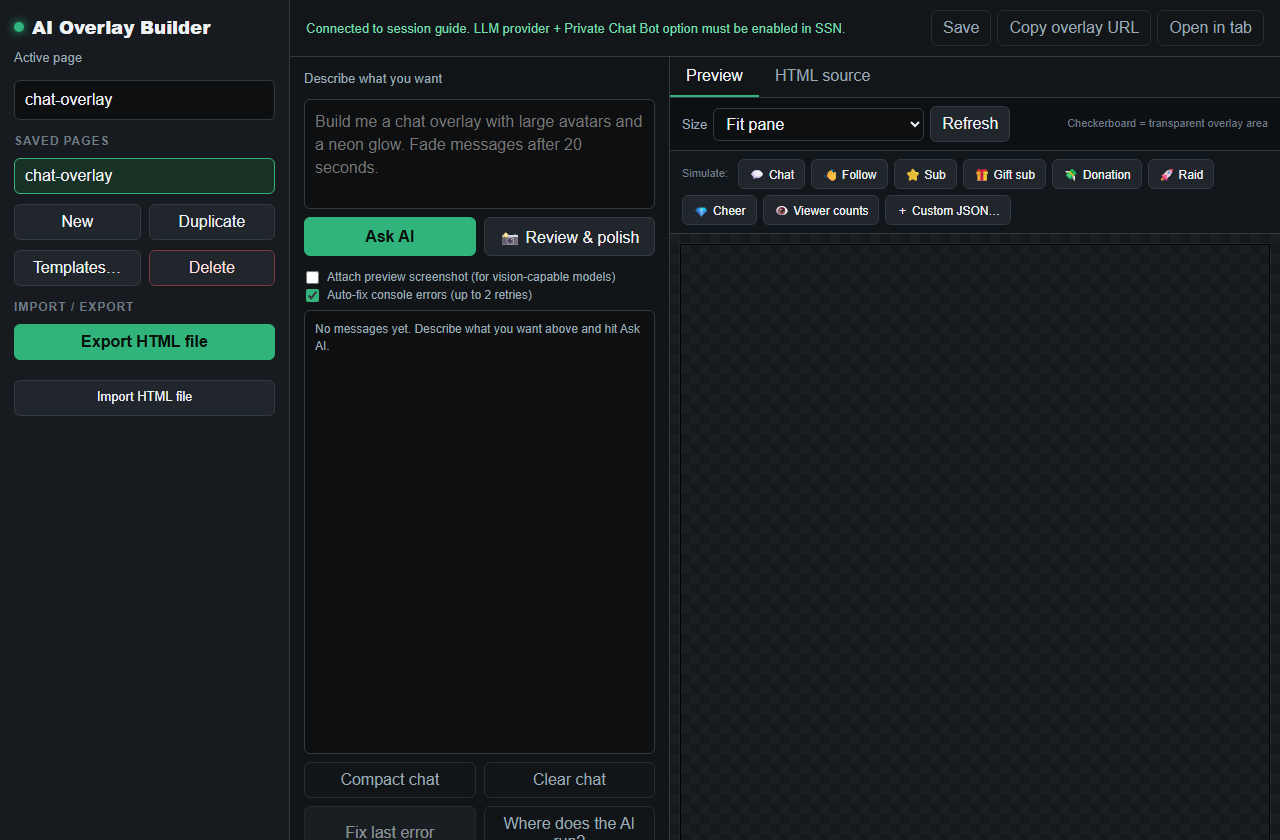

AI Overlay Builder page with prompt box, preview controls, event simulation buttons, save controls, and HTML source tab
Preview and simulate events before you put the overlay into OBS.

1. Build In The Prompt Page

  1. Open aiprompt.html?session=YOUR_SESSION.
  2. Describe what the overlay should do and how it should look.
  3. Use a focused prompt: layout, message behavior, colors, animation timing, and what event types matter.
  4. Click the preview controls and simulate chat, follow, sub, gift, raid, donation, and custom JSON events.
  5. Save the overlay with a clear page name.

2. Add The Output Page To OBS

After saving, add the output page as an OBS Browser Source. Keep the same session and saved page name.

https://socialstream.ninja/aioverlay.html?session=YOUR_SESSION&overlay=chat-overlay

If the overlay is transparent or only appears during events, use the builder's simulation buttons first so you know it can render.

3. Use Templates When You Need Faster Setup

If you want something reliable quickly, start from a template and customize it. Use the AI builder when you want something more specific.

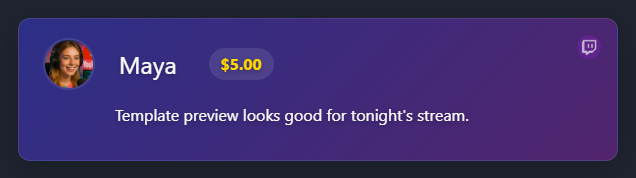

Sample Social Stream Ninja overlay preview showing a styled chat message
Templates are better for known layouts; AI generation is better for custom experiments.

Common Fixes

  • Blank preview: click a simulation button and check the console panel.
  • OBS blank: confirm the saved page name and session match the builder.
  • Wrong event behavior: test with the exact event type you expect, not only normal chat.
  • Generated code is broken: use Review & polish or simplify the prompt.
  • Overlay works in builder but not OBS: open the same aioverlay.html URL in a normal browser first.
